| Capaciteit: | 10L/min | Stroom: | 20000W |
|---|---|---|---|
| Spanning: | 220V | Gastype: | NG ((2000Pa) |
| Waterdruk: | 0,025-1,0 mpa | Warmte-invoer: | 20 kW |
| Efficiëntie: | Meer dan 84% | Verbindingsgrootte: | G1/2“ |
| Productgrootte: | 530*330*143 mm | Verpakkingsmaat: | 675*500*200 mm |
| Netto gewicht: | 9 kg | Grof gewicht: | 10 kg |

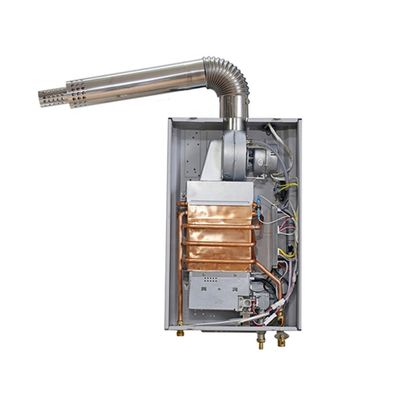

| Uitlaatpijpdiameter: | 60/100 mm | Warmtewisselaar: | Zuurstofvrij koper |

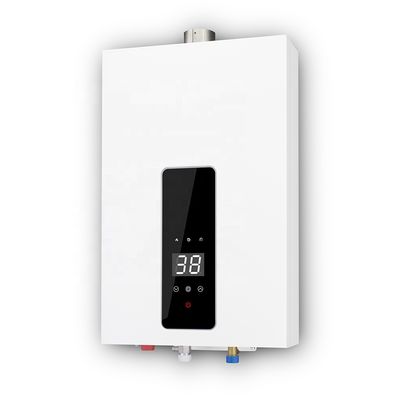

| Controlemodus: | Aanraakbediening | ||
| Markeren: | Constant Temperature Gas Water Heater,Oxygen-free Copper Gas Water Heater,1 Year Warranty Gas Water Heater |
||

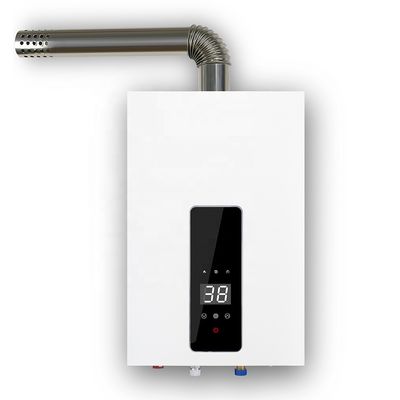

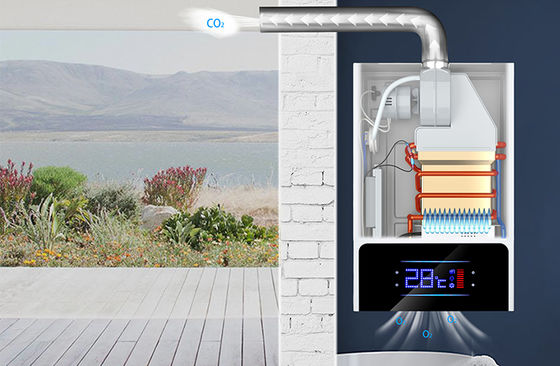

| Capacity | 10L/Min | Exhaust Type | Forced Exhaust Type |
| Connection Size | G1/2" (Gas/Inlet/Outlet) | Efficiency | Over 84% |
| Gas Type | LPG / NG (Optional) | Product Size | 530*330*143 MM |
| Gas Pressure | LPG(2800Pa)/NG(2000Pa/1300Pa) | Packing Size | 675*500*200 MM |
| Working Water Pressure | 0.025-0.8 Mpa | N.W/G.W | 9/10 kg |
| Rated Heat Input | 20KW | Other Optional Size | 12L |
| Hot Water Supply L/Min △t 25°C | Rated Heat Load | Product Size(mm) | Packing Size(mm) | Loading Quantity 20GP/40HQ(PCS) |
|---|---|---|---|---|
| 10L/12L | 20KW/24KW | 530*330*143 | 675*500*200 | 410/980 |
| 14L/16L/18L | 28/32/36KW | 550*350*169 | 675*505*220 | 370/880 |
